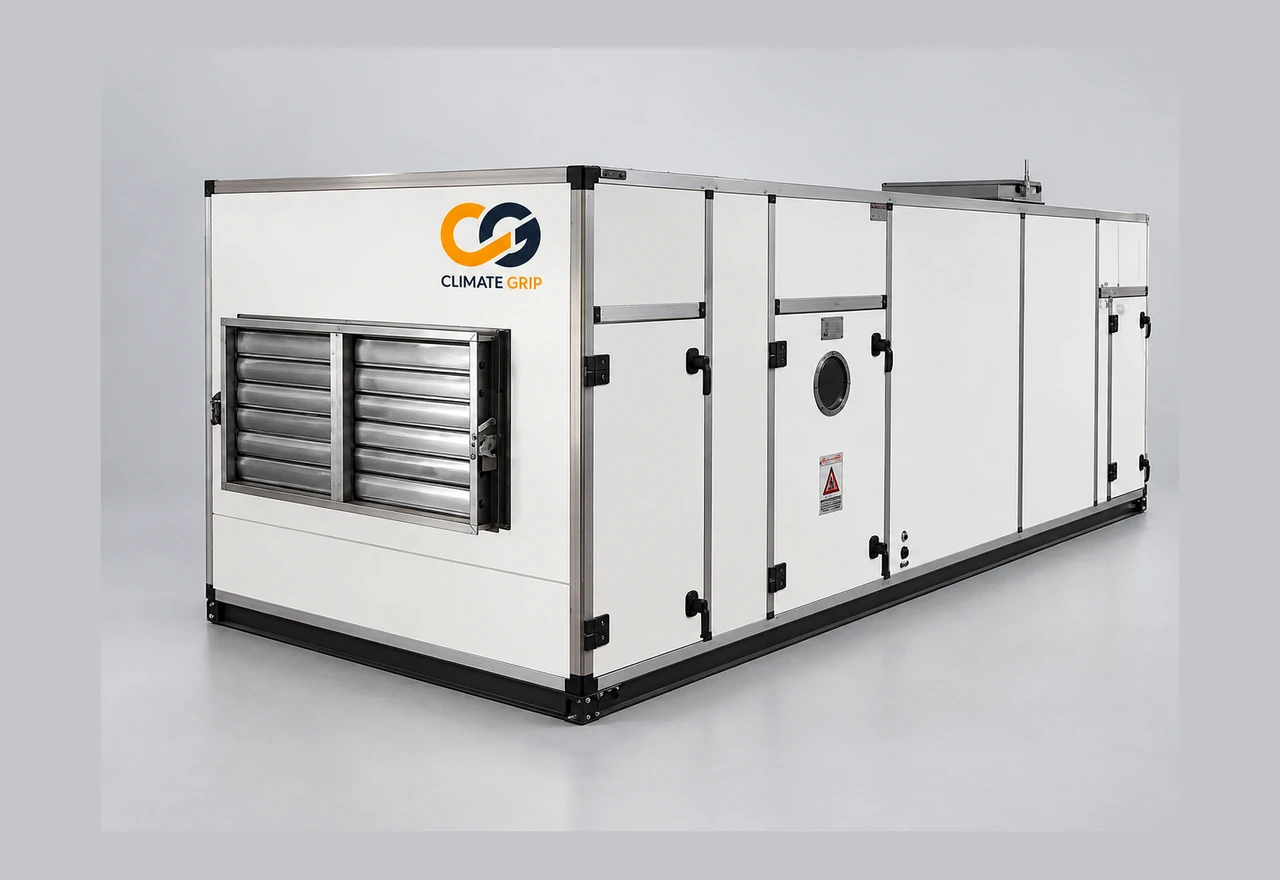

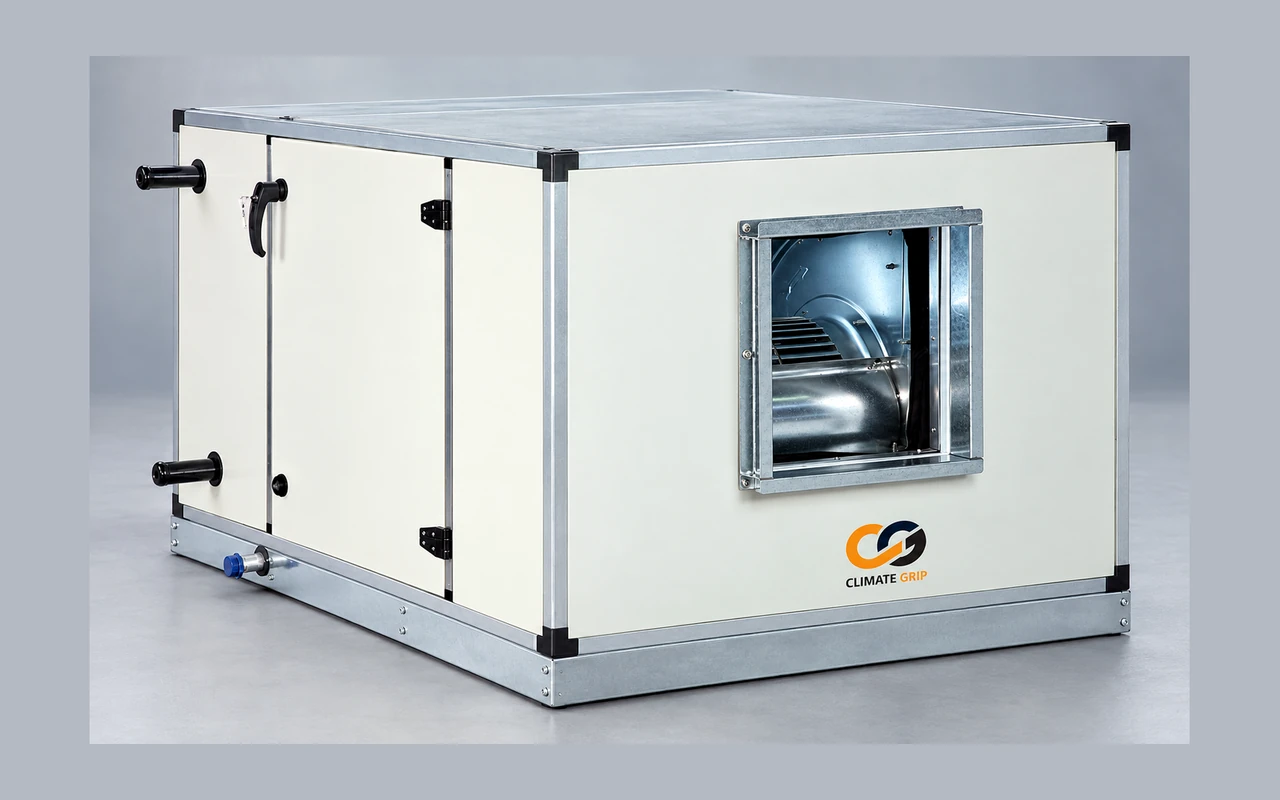

Floor-Mounted Air Handling Unit
Single- and double-tier floor-mounted units engineered for high-volume conditioned-air delivery and straightforward plant-room maintenance.
ISO 9001:2015Custom engineeredIndustrial applications
Product range5,000-30,000 CFM
Single-tier configuration
Double-tier configuration
5,000-30,000 CFM table
Low-pressure-drop filters
TEFC motor option
Product overview
Plant-room equipment organised around capacity and access.
The source material describes this family as floor-mounted single-tier and horizontal double-tier units. Both place filters, coils and fan assemblies in a robust casing designed for plant-room installation and direct service access.

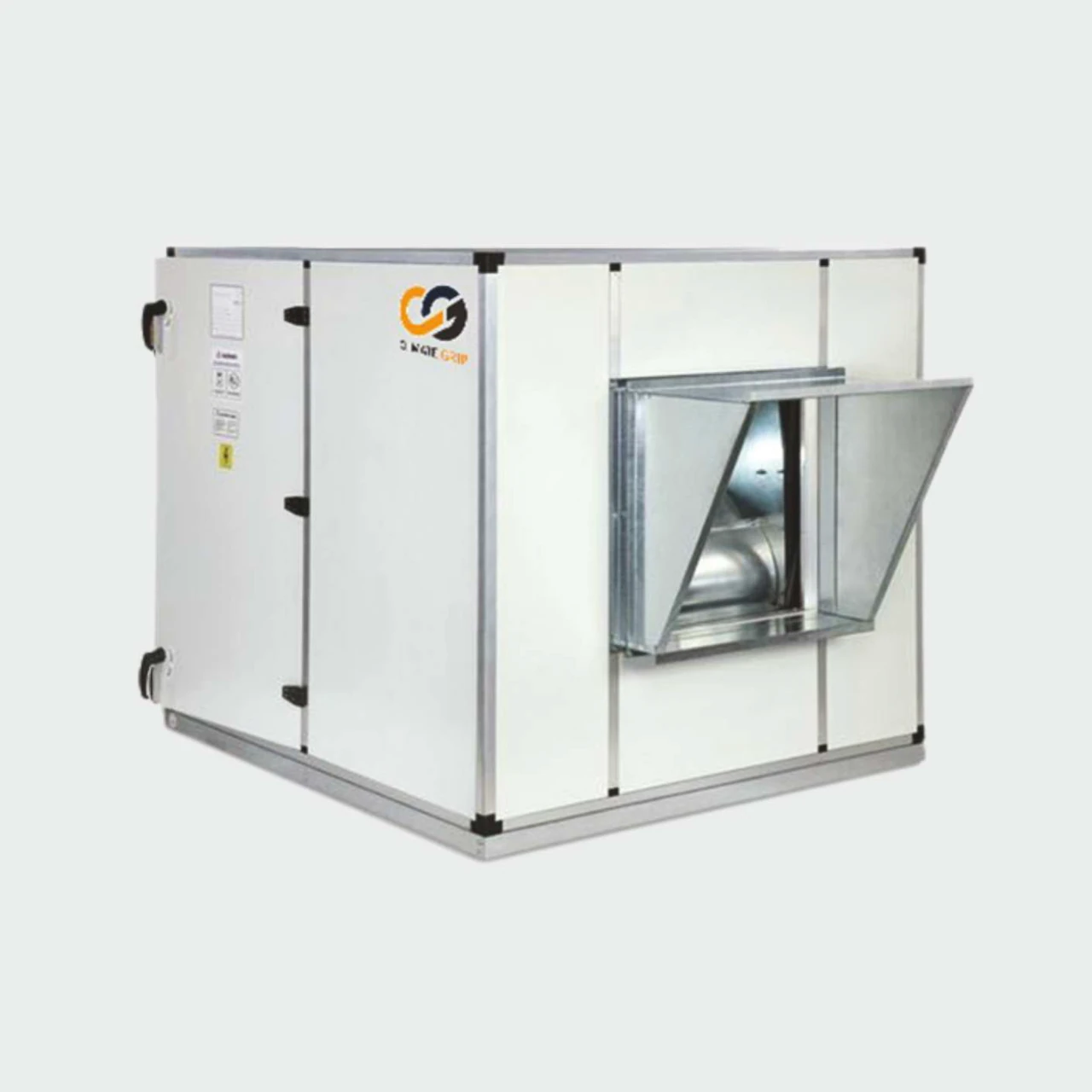

The double-tier arrangement uses vertical space to manage larger duties or installation constraints. It is separate from the Fresh Air Ventilation Unit, which is focused specifically on controlled outdoor-air supply.
Features & benefits
Performance translated into practical value.
The priorities below are specific to this product family and its typical operating environment.
Low-pressure-drop filtration
Removable filters reduce resistance and can be cleaned without specialist tools.
Hygienic drainage
A multi-slope drain pan supports prompt condensate removal and cleaner internal conditions.
Service-led arrangement
Floor-level access reduces the complexity of routine inspection and component removal.
Construction
How the system is built.
Construction details are grouped by function so casing, airside components and maintenance provisions remain easy to evaluate.
Casing & frame
- Corrosion-resistant aluminium profile
- Specially designed internal coving
- Pre-coated outer skin
- Galvanized steel inner skin
Airside assembly
- Low-pressure-drop filters
- Multi-slope drain pan
- Forward or backward-curved centrifugal fans
- TEFC motor with IP55 and Class F insulation
Technical specifications
Source-supported product data.
Final selections and dimensions are confirmed against project duty, approved drawings and site conditions.
| Model | Air volume (CFM) | L (mm) | W (mm) | H (mm) | Fan | Motor HP |
|---|---|---|---|---|---|---|
| DHA-050 | 5,000 | 2,050 | 1,400 | 1,100 | KAT 18/18 C | 5 |
| DHA-080 | 8,000 | 2,150 | 1,450 | 1,400 | FDA 500 CM | 5 |
| DCS-100 | 10,000 | 2,250 | 1,750 | 1,400 | FDA 630 CM | 7.5 |
| DHA-120 | 12,000 | 2,400 | 2,100 | 1,400 | FDA 630 CM | 7.5 |
| DHA-150 | 15,000 | 2,500 | 2,100 | 1,700 | FDA 710 CM | 10 |
| DHA-180 | 18,000 | 2,700 | 2,350 | 2,100 | FDA 800 CM | 15 |
| DHA-200 | 20,000 | 2,900 | 2,700 | 2,100 | FDA 900 TM | 15 |
| DHA-250 | 25,000 | 2,900 | 2,700 | 2,350 | FDA 1000 TM | 15 |
| DHA-300 | 30,000 | 3,150 | 3,000 | 2,700 | FDA 1000 TM | 20 |
